Specs
POWER
627cc Commercial-Grade, V-Twin OHV-Technology, EFI Vanguard 4-stroke Gas Engine. Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight
TORQUE
34.5 ft-lbs.
SPEED
24 mph**
FUEL CONSUMPTION
18 mpg**
RANGE
Up to 100 miles**
STARTING
12V keyed ignition
BATTERY
12V / 315 cca utility class
SPARK PLUG
NGK C7HSA
FUEL CAPACITY
5.0 gal
ALTERNATOR
16 amp
TRANSMISSION
CVT automatic
TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle
DIFFERENTIAL
Cable Actuated Rear-Locking
DRIVE
Switch engaged on demand, 4 wheel drive
FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 8" travel
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
BRAKE SYSTEM
4 wheel disk, hydraulic brake
TIRES
25 x 10 - 12 (front) 25 x 10 - 12 (rear)
DIMENSIONS
145” L x 58” W x 76” H
WHEEL BASE
105”
TURNING RADIUS
14’ inside radius
CURB WEIGHT
1,560 lbs.
BED MATERIAL
XL Convertible Steel Bed / Flat Bed - with electric dump with integrated cargo tie downs
BED DIMENSIONS
14.25"h x 50.25" w x 70" L (outside bed dimensions) 10”h x 48.75”w x 69.25”L (inside / useable)
GROUND CLEARANCE
11"
*BED CAPACITY
21 cu.ft. / HD 1,000 lbs.
TOWING CAPACITY
1,750 lbs.
TOTAL PAYLOAD
1,500 lbs.
WARRANTY
3 year engine / All other 1 year limited
ADDITIONAL FEATURES

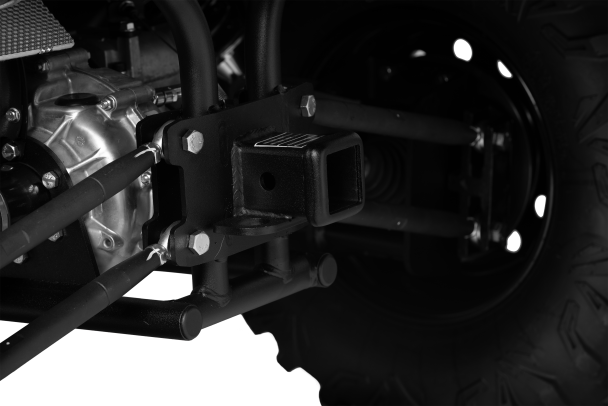

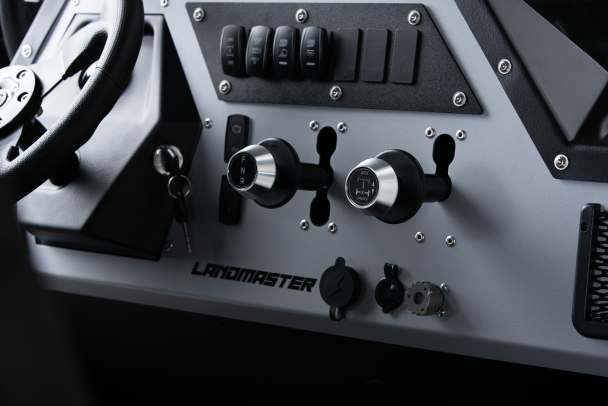

DOT certified 3pt lap/shoulder DOT certified belts for driver and passenger with driver indicator light, Heavy Duty Bumper, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” front and rear receiver hitch, poly dump bed standard, bench seating, welded steel frame, Complete weather-sealed wiring connection. Wide selection of additional accessories available. Fuel gauge located under seat. In-dash, hour/volt meter standard. EPS Standard.
