Specs
POWER / MOTOR
AC Motor powered by a 48V Lithium-Ion battery powerplant (8.0kW)
SPEED
30MPH* (24MPH with Rear Flip Seat)
RANGE
Up to 50 miles ( 160 ah battery)*
STARTING
Keyed on/off
BATTERY
48V 160AH Lithium-Ion
TRANSMISSION
Direct drive
ALTERNATOR
Converter / 40 amps
TRANSAXLE
Model 24 Schafer
DIFFERENTIAL
Cable Activated Rear Locking
DRIVE
4wd (Switch engaged on demand, 4 wheel drive)
FRONT SUSPENSION
Double A-arms, adjustable coil over shock with up to 8" travel
REAR SUSPENSION
Independent trailing arm, with radius rod, adjustable camber & tow control, dual-rate coil over shock with up to 8" of travel
BRAKE SYSTEM
4 wheel disc, hydraulic brake / hand-operating parking brake
TIRES
25” Standard Max-Terrain HD DOT / Radial 8 Ply Tires on 12” Steel Wheels
DIMENSIONS
127” L x 58” W x 76” H (with poly bed)**
WHEEL BASE
105”
TURNING RADIUS
14’ inside radius
GVWR
2,530 lbs.
CURB WEIGHT
1,530 lbs.
BED MATERIAL
“Poly Bed” with stake pockets
BED DIMENSIONS
35.25” L x 41.5” W x 11” D
GROUND CLEARANCE
11"
*BED CAPACITY
Poly - 9 cu.ft. / 800 lbs.
TOWING CAPACITY
1,500 lbs.
TOTAL CAPACITY
1,000 lbs.
WARRANTY
1 year motor / all other 1 year limited, 5 year Lithium battery
ADDITIONAL FEATURES

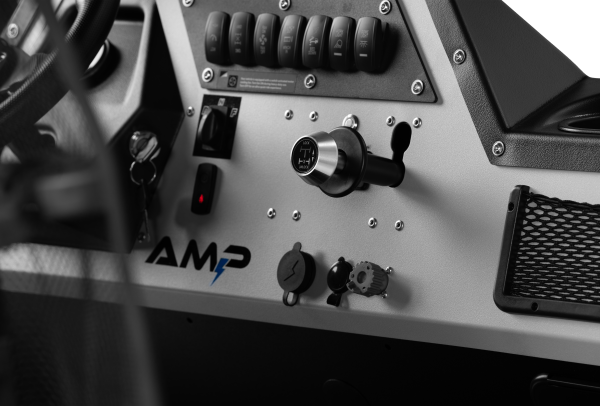

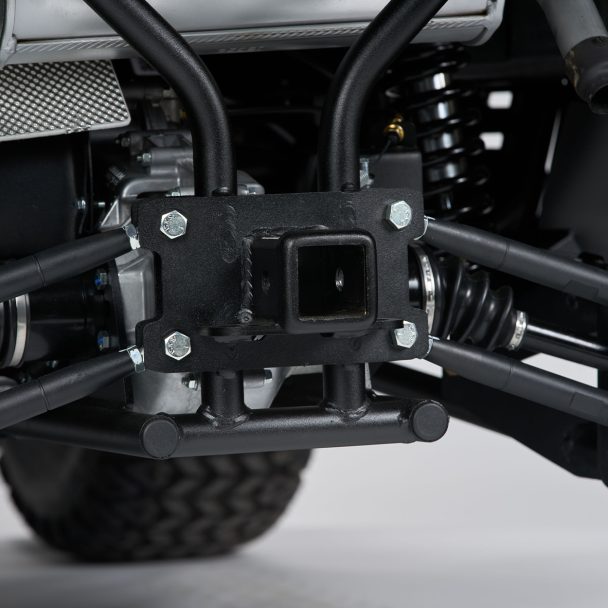

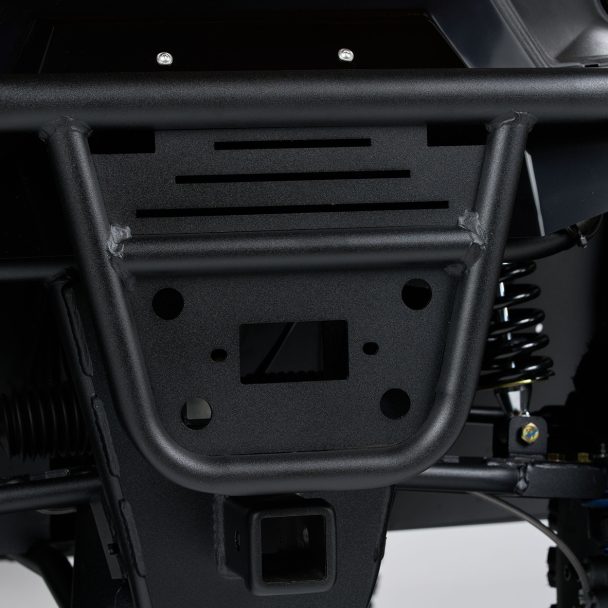

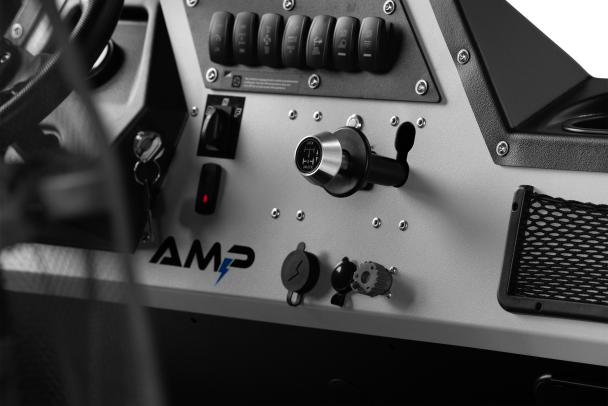

On-board charger, DOT certified 3pt lap / shoulder belts for driver & passenger, 12V/18W LED headlights, 2” rear and front receiver hitch, welded steel frame, Single 12V auxiliary outlet for accessories, polyurethane powder paint. Complete weather-sealed wiring connections. Wide slection of additional accessories available along with three bed options. In-dash, hour meter standard. LED true state of charge meter for the 48 volt system is standard. Low charge audible warning. Battery shut down switch. Electric accelerator pedal.
HILL CLIMBING CAPABILITIES
Your AMP is capable of climbing continuous inclines up to 25 degrees. Depending on the passenger(s) and cargo weight, expect top speed between 5-10 MPH.
