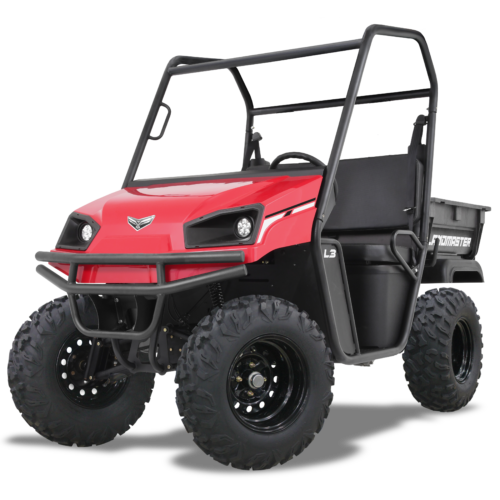

American Landmaster L3 – 2WD 2023

$7,299.00*

*Prices subject to change. Please contact for latest pricing.

Stock status: Call Store for Availability

Whether it’s upkeep on your garden or going for an evening drive around the lake, the L3 4×2 side-by-side delivers all the functionality you need, in an easy-to-maintain platform that will keep you doing the things you enjoy. This simple-designed, easy-to-use machine is perfect for basic transportation, light property maintenance, lake/neighborhood rides, or other light duty tasks. You’ll be able to save a ton of time with L3 whether it’s just driving your trash down the driveway, going to get the mail, hauling fire wood, pulling farm implements, hauling the grandkids around, or whatever you put to the test.

Call Us Now

Specs

POWER
9.5HP | 277cc LandMAXX Commercial Power Engine by Kohler 4-Stroke OHV single cylinder with low oil shutdown

SPEED
Up to 22 mph**

FUEL CONSUMPTION
Up to 32 mpg* *

RANGE
Up to 100 miles**

STARTING
12V keyed ignition / recoil backup

BATTERY
12V / 360 cca utility class

SPARK PLUG
NGK BKR5E

FUEL CAPACITY
5.0 gal

ALTERNATOR
10 amp

TRANSMISSION
CVT automatic

TRANSAXLE
Gear drive Schafer/DANA oil-filled transaxle

DIFFERENTIAL
Limited Slip Differential

DRIVE
2 wheel drive

FRONT SUSPENSION
Double A-arms, adjustable shocks with up to 3” travel

REAR SUSPENSION
Articulated rear swing arm, featuring quad adjustable shocks with up to 3” travel

BRAKE SYSTEM
6.25” dual rear hydraulic drum with hand operated parking brake

TIRES
25 x 8 – 12 (front) 25 x 10 – 12 (rear)

DIMENSIONS
95” L x 50” W x 77” H

WHEEL BASE
73”

TURNING RADIUS
7.5’ inside radius

CURB WEIGHT
1,100 lbs.

BED MATERIAL
Structural foam “Poly Bed” with stake pockets

BED DIMENSIONS
35.25” L x 41.5” W x 11” D

BED CAPACITY
9 cu.ft. / 400 lbs.

TOWING CAPACITY
1100 lbs.

TOTAL PAYLOAD
800 lbs.

WARRANTY
3 year engine / All other 1 year limited

ADDITIONAL FEATURES
3pt lap/shoulder belts for driver and passenger, twin 12V auxiliary outlets for accessories, 12V/18W LED headlights, polyurethane powder paint, 2” rear receiver hitch, dump bed, bench seating, welded steel frame. Fuel gauge located on fuel tank. In-dash, hour/volt meter standard
